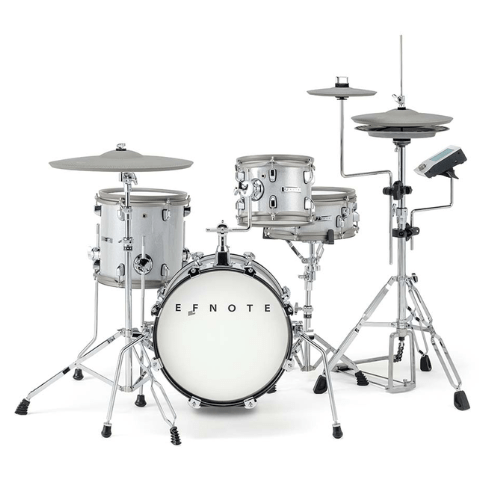

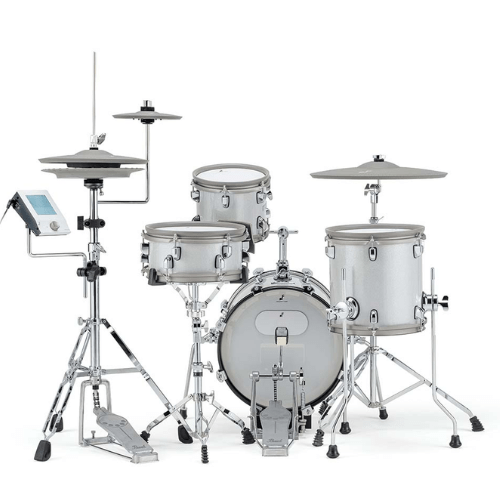

EFNOTE MINI | Electronic Drum Kit

• Size: 14 x 10″
• Finish: White Sparkle
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Steel hoop

• Size: 10 x 4.5″
• Finish: White Sparkle
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim

• Size: 8 x 6.5″
• Finish: White Sparkle
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

• Size: 10 x 10″
• Finish: White Sparkle
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

• • Size: 12″ (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.

EFNOTE mini sound module does not support hi-hat cup zone.

• Size: 8″
• Color: Warm gray
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: Weight simulation, Fine engraved surface

• Size: 16″
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

• • 3-Zone: Snare, Ride
  • 2-Zone: Tom 1/2*/3, HH, Crash 1/2*
  • 1-Zone: Kick

As an option, one additional pad can be connected with the “TOM 2/CRASH 2” cable.

The “TOM 2/CRASH 2” cable is a selectable input for either pad – Tom 2 or Crash 2.

Tom 2 or Crash 2 pad is not included.

• • Line (1/2) Output: 2x 1/4” TS Phone (+4dBu, Unbalanced)
  • Phones (3/4) Output: 3.5mm (1/8″) Stereo Phone (320 mW + 320 mW @32Ω)
  • Audio Input: 3.5mm (1/8″) Stereo Phone (+2dBu Max)

• USB: C Type USB 2.0 Hi-Speed
  Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
  MIDI: In/Out
• Bluetooth Audio Input: (A2DP)
• Bluetooth MIDI In/Out: (Bluetooth Low Energy/GATT)
• Bluetooth MTransmission Frequency: 2402–2480 MHz, Maximum Transmit Power: 2.5 mW EIRP

• Preset Drum Kits: 12 (Editable)
• User Drum Kits: 18
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo)

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 types)

• 106 (W) x 144 (D) x 50 (H) mm
• 675 g

Excluding protrusions

• DC 12 V, 600 mA (Max)

• 1x Tom holder arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″)
• Tube diameter: φ22.2 mm (7/8″)
• Height adjustment range: 650 — 850 mm

• 1x Z-rod

• 1x Sound module arm
• 1x Smartphone tray

• For 10″ diameter snare drums
• Light weight
• Geared basket tilter
• Double braced legs
• Tube diameter: φ15.9 mm (5/8″)
• Height adjustment range: 450 — 600 mm

• Light weight
• Geared tilter
• Middle tube diameter: φ15.9 mm (5/8″), φ13.0 mm (1/2″)
• Height adjustment range: 650 — 1,300 mm

• Approx. 115 (W) x 70 (D) cm
• Approx. 3.8 (W) x 2.3 (D) feet

Without drum throne

• AC Adapter
• Brake-Out Cable: EFD-MULTI-C
• Smartphone Tray Set
• Cable Ties
• Quickstart Guide

Kick pedal, hi-hat stand and drum throne are sold separately.
