KORG MINILOGUE XD POLYPHONIC ANALOUGE SYNTHESIZER
₹67,000.00₹76,000.00 Incl Tax (-12%)
KORG MINILOUGE XD
BRAND : KORG
MODEL : MINILOUGE XD
WARRANTY : 1 YEAR
Description
KORG MINILOGUE XD POLYPHONIC ANALOUGE SYNTHESIZER
KORG MINILOGUE XD
POLYPHONIC ANALOUGE SYNTHESIZER
An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
minilogue xd is a fitting addition to the original groundbreaking minilogue.
minilogue xd – Introduction Movie
Dorian Concept fooling around on minilogue xd
Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis. The analog synthesizer circuit of the minilogue, whose genuine analog sound had a huge impact on the synth world, has been further developed for the minilogue xd.
Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there’s also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd’s filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.
Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.
Equipped with a digital multi-engine
The additional sound design possibilities of digital sound are delivered by the multi-engine that’s provided as a third oscillator in addition to the two analog VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that’s different than analog, and use it at the same time as the analog engine, infinitely expanding the potential of hybrid sound design.
Noise generator
The noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the color of the noise.
VPM oscillator
minilogue xd’s multi-engine features a VPM (Variable Phase Modulation)/FM oscillator with a two-operator structure. It can produce sharp, metallic sounds with complex overtones beyond the possibilities offered by analog systems. With 16 types of oscillator and a SHAPE knob control, you’ll be able to create complex sounds intuitively.
User oscillators
User oscillators allow you to load your own oscillator programs that you created or obtained via the internet. There are 16 user slots, as well as one type of morphing wavetable oscillator provided as a preset.
High-quality digital effects
minilogue xd’s high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you’ve created.
User customization brings out infinite potential
The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you’ve created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software.
What sounds might arise from the fusion of the expanded digital oscillators with analog synthesis? Create original programs, share code, and participate in the user community. You can start with sample code provided by KORG.
Polyphonic step sequencer controlled by 16 buttons
The step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.
A thoughtfully designed interface
Joystick
Controls pitch bend and modulation depth, etc. A desired parameter can also be assigned to the up/down axis.
Voice mode
The four voice modes were selected for the minilogue xd.
– POLY: The minilogue xd operates as a four-voice polyphonic synth.
– UNISON: The unit operates as a monophonic synth, with the four voices working in unison.
– CHORD: Chords are produced using one to four voices.
– ARP / LATCH: (ARP) Provides an arpeggiator with up to four voices that can also be used while the sequencer is running / (LATCH) Switches latch on or off.
A voice mode depth knob is also provided, which applies a corresponding effect for each mode.
– POLY: Turning the knob toward the right switches to DUO mode and deepens the detune.
– UNISON: Turning the knob toward the right deepens the detune.
– CHORD: Selects mono or chord type.
– ARP / LATCH: (ARP) Selects the arpeggiator type.
Micro tuning
The minilogue xd is equipped with the micro tuning function featured on the monologue, allowing you to individually adjust the pitch of each key. Built in are 23 preset tunings that include some created by Dorian Concept and Taylor McFerrin, and users can also create and store six user scales and six user octaves. Start by trying out the preset tunings of famous musicians, and then advance to creating your own original tunings.
Oscilloscope and motion view display
The organic EL display is now larger, and also provides oscilloscope functionality for you to view sound as the electrical signal’s waveform. This makes parameter changes visible in real time, giving you visual feedback that helps you understand how the synthesizer works. The display can also show motion view for visualizing the movement of a stored motion sequence.
A full complement of input and output jacks
Output is now stereo
A stereo effect unit is provided at the final stage, and the output jacks are now also stereo. Spatial-type effects such as delay, reverb, and chorus will add an even more convincing touch to your thick analog synth sounds and sparkling digital synth sounds.
Damper pedal jack
A damper jack has been added in response to requests from artists and users.
Two CV IN jacks
Two CV IN jacks are provided, with voltage levels of -5V–+5V. In addition to CV/Gate, these can also input modulation signals, allowing you to use external devices to control parameters in the same way as moving the joystick up or down.
SPECIFICATIONS :
- Keyboard
- 37-keys (Slim-key, velocity sensitive)
- Sound Generation
- Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
- Maximum Polyphony
- 4 voices
- Programs
- 500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.
- Voice Mode
- 4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
- Sequencer
- 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
- Main Synthesis Parameters
- VCO1
- WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- VCO2
- WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
- MODULATION
- SYNC, RING, CROSS MOD DEPTH
- MULTI ENGINE
- NOISE/VPM/USER, TYPE、SHAPE
- MIXER
- VCO1, VCO2, MULTI
- VCF
- CUTOFF, RESONANCE, DRIVE, KEYTRACK
- AMP EG
- ATTACK, DECAY, SUSTAIN, RELEASE
- EG
- ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
- LFO
- WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
- Main effect Parameters
- EFFECT
- TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
- MULTI ENGINE
- Noise Generator
- 4 types
- VPM oscillator
- 16 types
- User oscillator
- 16 slots
- MOD EFFECTS
- CHORUS
- 8 types
- ENSEMBLE
- 3 types
- PHASER
- 8 types
- FLANGER
- 8 types
- USER
- 8 types
- DELAY
- DELAY
- 12 types
- USER
- 8 slots
- REVERB
- REVERB
- 10 types
- USER
- 8 slots
- Controls
- Joy stick that can modify different parameters for each program, PORTAMENTO knob
- Display
- Main
- Real-time OLED oscilloscope provides visual feedback of parameter changes
- MULTI ENGINE section
- 7 segments x 6 digit LED display

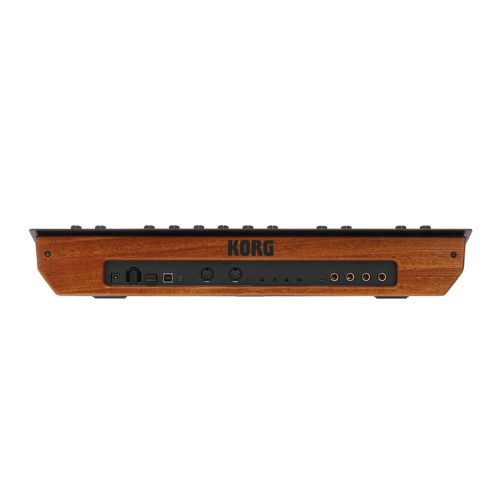

- Input/Output connectors
- Headphone jack (Stereo phone jack)
- OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
- CV IN 1, CV IN 2 jacks (3.5 mm [1/8″] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
- SYNC IN jack (3.5 mm [1/8″] mini jack, maximum input level 20 V)
- SYNC OUT jack (3.5 mm [1/8″] mini jack, output level 5 V)
- MIDI IN jack
- MIDI OUT jack
- USB B jack
- DAMPER jack (half damper is not supported)
- Power Supply
- AC adapter (DC9 V)
- Power Consumption
- 8 W
- Dimensions (W x D x H)
- 500 mm x 300 mm x 85 mm / 19.69″ x 11.81″ x 3.35″
- Weight
- 2.8 kg / 6.17 lbs.
- Included Items
- AC adapter
- Accessories (sold separetely)
- SC-MINILOGUE Soft shall case
- SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
- SQ-CABLE-6 Sync cable
- DS-1H Damper pedal
- PS-1 Pedal switch
- PS-3 Pedal switch
| * | All products names and specification names are trademarks or registered trademarks of their respective owners. |
|---|---|
| * | Appearance and specifications of products are subject to change without notice. |
logue SDK Custom Content
Sound Librarian
Like the KORG prologue, the KORG minilogue xd offers you the possibility to not only load Sound Libraries but also a wide variety of Custom Content.
With Custom Oscillators and Effects, the minilogue xd’s powerful MULTI-ENGINE will take your music to the next level!
The minilogue xd Sound Librarian is user-friendly software that allows you to manage the sound programs, custom oscillators and effects in your minilogue xd via USB MIDI.
Download the Sound Librarian for Win >
Download the Sound Librarian for Mac >
In order for the minilogue xd to connect to your computer properly you will need to install the latest version of the KORG MIDI USB Driver:
* How to import the sound packs, custom oscillators and effects
Sound packs are distributed in the form of “preset“ files, ending with the .mnlgxdpreset extension. To import a sound pack, launch the minilogue xd Sound Librarian by dragging the preset file over it. Custom oscillators and effects are distributed in the form of a “user unit” file, ending with the .mnlgxdunitt extension. To add an oscillator or effect, drag and drop the user unit file onto the corresponding list in the minilogue xd Sound Librarian, and press the SEND ALL button to upload it to your minilogue xd. Please refer to the Operation Manual included in the minilogue xd Sound Librarian for further details
Factory Default User Oscillator: Waves
The minilogue xd is preloaded with one user oscillator: Waves. This oscillator is stored in one of the 16 slots available for user oscillators. It consists of two main wavetable oscillators and an additional sub wave that can be optionally used as a ring modulation source. The bit depth of the mixed output can be reduced for a lo-fi effect. The source code for Waves will be available as a template along with the SDK source code on GitHub, so new and unique oscillators can be created.
logue SDK 3rd Party Custom Content
Several developers are creating new and interesting Custom Oscillators and Effects for your KORG minilogue xd!
Disclaimer:
– This content is 3rd party made, please go to the developer’s site and inform yourself adequately before installing any Custom Content on your minilogue xd.
– KORG will not be held responsible for any incompatibility issues or damage that may occur to your synthesizer.
– KORG won’t be offering any support for these so in case you have any questions please ask the developer directly.
– Some of these are offered for free and some aren’t, please make sure to check the details with the developer.
hammondeggsmusic
“The logue SDK has married both my passion for playing music and developing unique software solutions. I am having a lot of fun with this, and look forward to sharing my work with everyone.”
Sinevibes
Founded in 2006, Sinevibes specializes in designing and building innovative music software. The company strives to develop high-end DSP technologies that create truly unique new sounds while also being intuitive and easy to use. In addition to this, Sinevibes is working with the world’s top manufacturers and their work can be found on some the world’s most well-known gear and software.
DirtBoxSynth
DirtBoxSynth are an independent developer based in the UK. They have created dozens of oscillators and effects for the ‘Logue platform including wavetable, wavefolding, additive and parametric. The audio demo uses only DirtBoxSynth oscillators and mod/delay effects without using the analogue filter or VCOs.
Roll-log sounds
Roll-log Sounds aims to bring every imaginable classic to modern synthesis techniques, modulation methods and effect algorithms to the logue SDK, combining with versatile desktop apps that enable users to customize and edit with ease.
Edouard Digital
Edouard Digital is the sound design company created by French electronic music artist and producer Edouard who holds a large collection of synths and modules, and develops a few for himself and the electronic music community.
Centrevillage
“Developing unique plugins and eurorack modules. I am interested in expressing analog imperfections and instabilities digitally.”
Tim Shoebridge
“I am a musician, composer, sound designer and youtuber with a technical background in computer programming. As well as designing numerous synthesiser sound presets, I design and develop user oscillators and effects plugins for Korg’s Minilogue XD and Prologue synthesisers.”
logue SDK
minilogue xd and prologue share an open development API (Application Programming Interface) that allows users to extend the possibilities of the hardware via an SDK (Software Development Kit) and dedicated development tools. Via this SDK custom digital oscillators can be created for the MULTI ENGINE, and custom modulation effects can be added to the existing modulation effects. Users can then load these new custom oscillators and modulation effects into their prologue via the prologue Librarian application (Mac and Win).
Important:
* The SDK code, tools and documentation are now available on GitHub
Click here to download the logue SDK
* To manage the sound programs, User Oscillators and Effects in your minilogue xd you will need the minilogue xd’s Librarian application.
* The Librarian, as well as Custom Content for the minilogue xd, when available, will be featured here:
Click here to go to the minilogue xd Librarian&Custom Content page
User Oscillators
minilogue xd’s MULTI ENGINE section has 16 user slots to accommodate custom oscillators. Once loaded via the minilogue xd Librarian application these custom digital oscillators coexist alongside the VCOs of each voice, play with the same polyphony, and are processed through the same analog signal path.
The shape knob can be used to control parameters of the custom oscillators and up to 6 other parameters can be exposed via the program edit menu.
User Effects
minilogue xd’s effects section also has 16 user slots to accommodate custom modulation effects, 8 user slots for Reverb effects and 8 slots for Delay effects. Once loaded via the prologue Librarian application these custom effects will appear alongside the existing modulation effects.
The speed and depth knobs can be used to control parameters of these custom modulation effects.
Obtaining custom oscillators/effects
Custom oscillators/effects created by, or in collaboration with, KORG are featured on the Librarian&Custom Content page. 3rd party developers are free to distribute their custom oscillators/effects through alternative channels such as community websites, forums, GitHub etc and in some cases featured here.
Loading custom oscillators/effects
In addition to the usual program management functionalities, the librarian application can be used to load and remove custom oscillators and effects via USB MIDI. The Librarian is a user-friendly software that allows you to manage the sound programs, the custom oscillators and effects on the minilogue xd (coming late January).
Will there be a patch editor to customize internal parameters of the on-board effects?
There are no editors planned for customization of on-board effects.
Will the librarian be implemented as a VST/AU plug-in to facilitate automation of minilogue xd and storage of patches with DAW projects via Snapshots?
No, not for this version of the Librarian.
The logue SDK provides a set of code libraries and tools to allow the creation of custom oscillators and effects.
For more detailed information, please subscribe to the logue SDK mailing list you can find below.
FAQ
Can I use the SDK Custom Content from prologue on minilogue xd (and vice versa)?
Check with the content creator to see if a minilogue xd specific version is available. If not, the prologue version can be used directly.
Do I need programming experience to create my own content?
Yes. Please note that as opposed to the prologue Librarian application that will be released in June, the Developer kit is a standard development kit meant for programmers, and not a neophyte-friendly high-level editor. We expect that oscillators and effects will be programmed and distributed by pro and hobbyist software developers. It will be an open development kit aimed at experienced users so we will not be offering technical support beyond the provided documentation.
What programming language can I use?
Custom oscillators and effects can be written in C, with support for a subset of C++. What limitations are imposed in terms of available RAM? (it would have to be reasonably finite). For oscillators, both code and variables must fit in 32KB of RAM. Custom effects will have additional RAM for delay lines, up to 2MB.
For the multi-engine, will the LFO be able to modulate its parameters?
The LFO can modulate the shape parameter of the multi-engine. Custom oscillators will be able to take advantage of this.
How many editable internal parameters can a custom oscillator have?
Parameters for custom oscillators are limited to 6. This is a deliberate limitation to keep custom oscillators straightforward and simple.
