Name: Proel Diva 15A | Active Speaker 15 Inches
SKU: 17103
Availability: InStock

Description

Proel Diva 15A | Active Speaker 15 Inches

2-way Active loudspeaker system. – 35” compression driver. – 90° x 60° horn. – 15” woofer with 2,5” VC. – 1000 W peak Class D amplifier with SMPS. – DSP with FIR filters and 5 DSP presets. – 3 Ch mixer with Stereo Bluetooth – SPL MAX: 129 dB. – Frequency range: 45 Hz – 20 kHz

Model: DIVA15A
Weight: 20.00Kg
EAN: 8032496976073
This product has a minimum quantity of 1

DIVA12A and DIVA15A are digitally processed active loudspeaker systems featuring multiple inputs and a versatile BLUETOOTH connectivity.

Hosted in lightweight yet ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven with a powerful 1000W CLASS-D amplifier with SMPS, featuring high headroom and an accurate dynamic control for the maximum undistorted output power.

The sophisticated pre-amp section includes an advanced processing with high-performance DSP engine and linear phase FIR filters, for a very smooth response and high-definition sound. An intuitive user’s interface with LCD color display and single-knob control is available for a quick selection and display of the 5 available EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH), allowing the speakers to be perfectly adapted to any kind of application. Thanks to the built-in 3-channel mixer with MIC/GUITAR/LINE input selection, HIGH and LOW EQ controls and two WIRELESS USB inputs for the use of PROEL U24 microphone systems, the DIVA12A and DIVA15A can be used in a variety of applications also without external equipment.

The BLUETOOTH interface allows to reproduce audio in mono streaming with a single speaker or in stereo streaming with two speakers and the STEREO LINK (TWS) function.

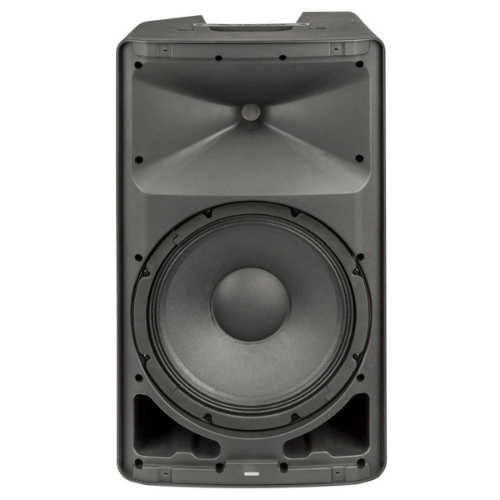

2-way active processed loudspeaker system
1” high-definition compression driver with 1.35” VC and titanium diaphragm
Wide-coverage 90° x 60° constant directivity horn
15” long-excursion woofer with 2,5” voice coil
High-efficiency 1000 W peak Class D power amplifier with SMPS
Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
High-definition DSP with 24-bit converters and FIR filters
5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
BLUETOOTH audio interface with STEREO LINK
Color LCD display for the DSP editing
SPL MAX: 129 dB
Frequency response: 45 Hz – 20 kHz

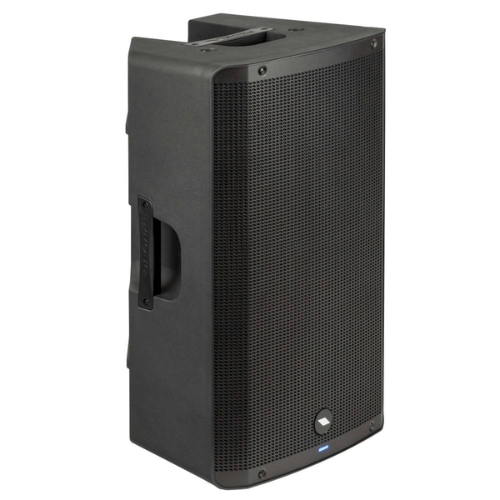

Lightweight, compact and ultra-durable PP cabinet
2 ergonomic handles for effortless transportation

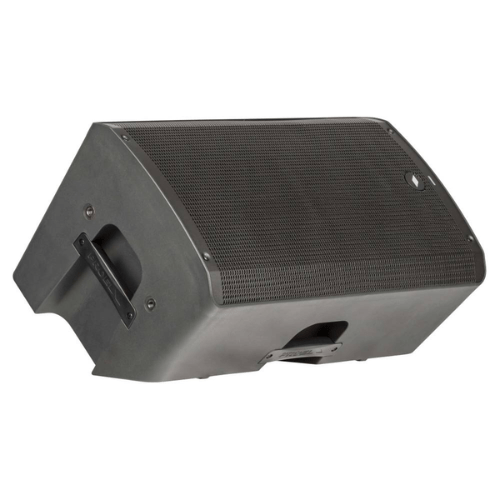

Slanted shape for the use as a stage monitor
Four M10 flying points

System type	2-way vented enclosure
High Frequency Device	1’’ compression driver with 1.35″ voice coil and titanium diaphragm
Low Frequency Device	15″ woofer with 2.5″ VC
Angular Coverage	90° H x 60° V
Total Peak Power	1000 W
HF Amplifier Continuous Power	100 W Class AB
LF Amplifier Continuous Power	400 W Class D
Power Supply	SMPS
System Processing	DSP
Frequency Response45	45 Hz – 20 kHz
Max SPL	129 dB

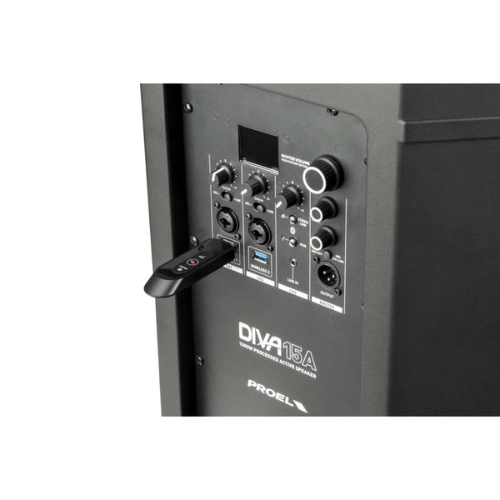

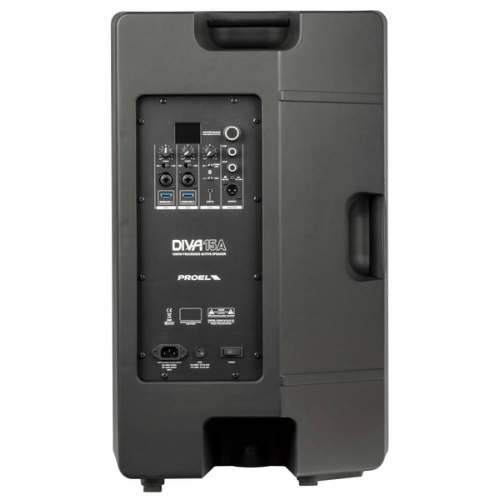

Inputs	2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS
Outputs	1 x selectable MIX OUT / CH1 LINK (M-XLR)
Controls	CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD
Bluetooth	Version 5.0, Audio Streaming, STEREO LINK (TWS)
Power Supply	100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch
Rated Consumption*	300 W
Floor Monitor Angle	45°
Flying System	4 x M10 – top/bottom
Cabinet Material	Polypropylene
Handles	1 x top, 1 x side
Mounting Pole	1 x bottom
Dimensions (W x H x D)	421 x 696 x 382 mm
Weight	19.0 kg (41.8 lb)

* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
