Roland TD-O2KV Electronic Drum kit

Roland TD-02KV Electronic Drum Kit

SPECIFICATIONS

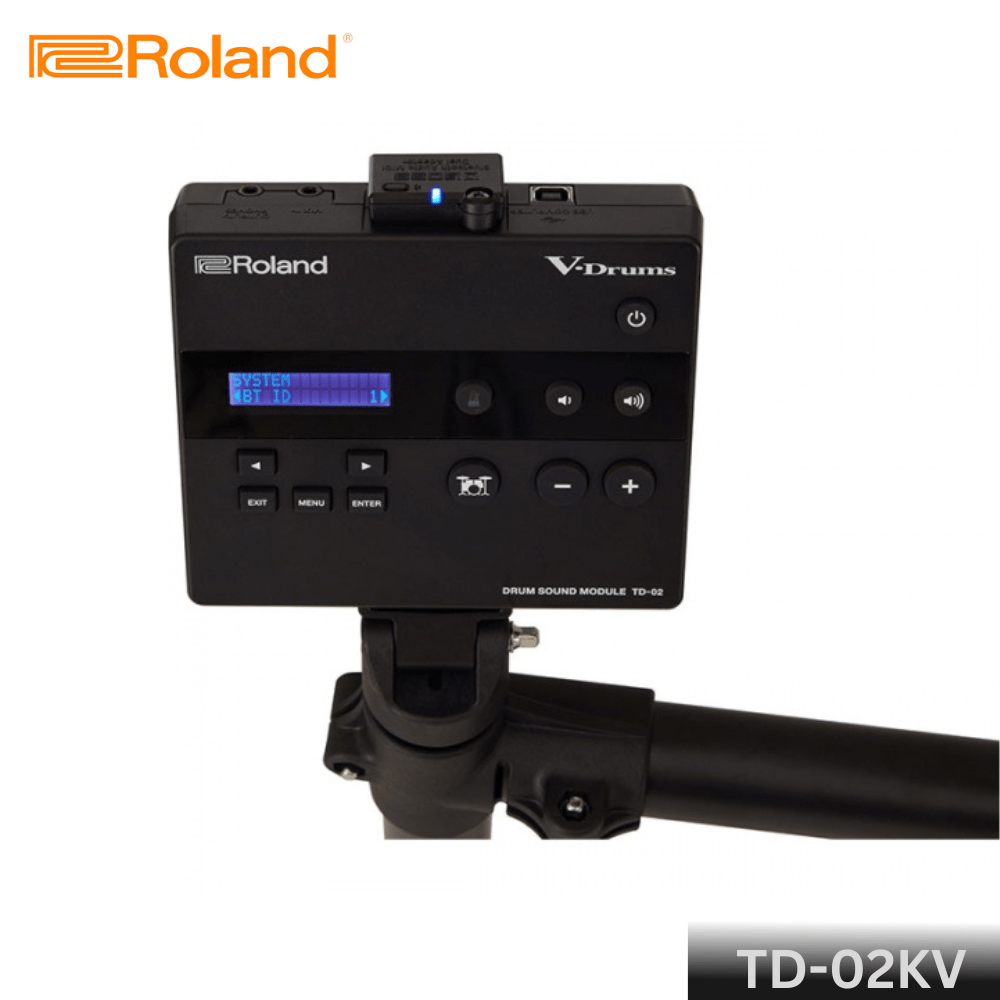

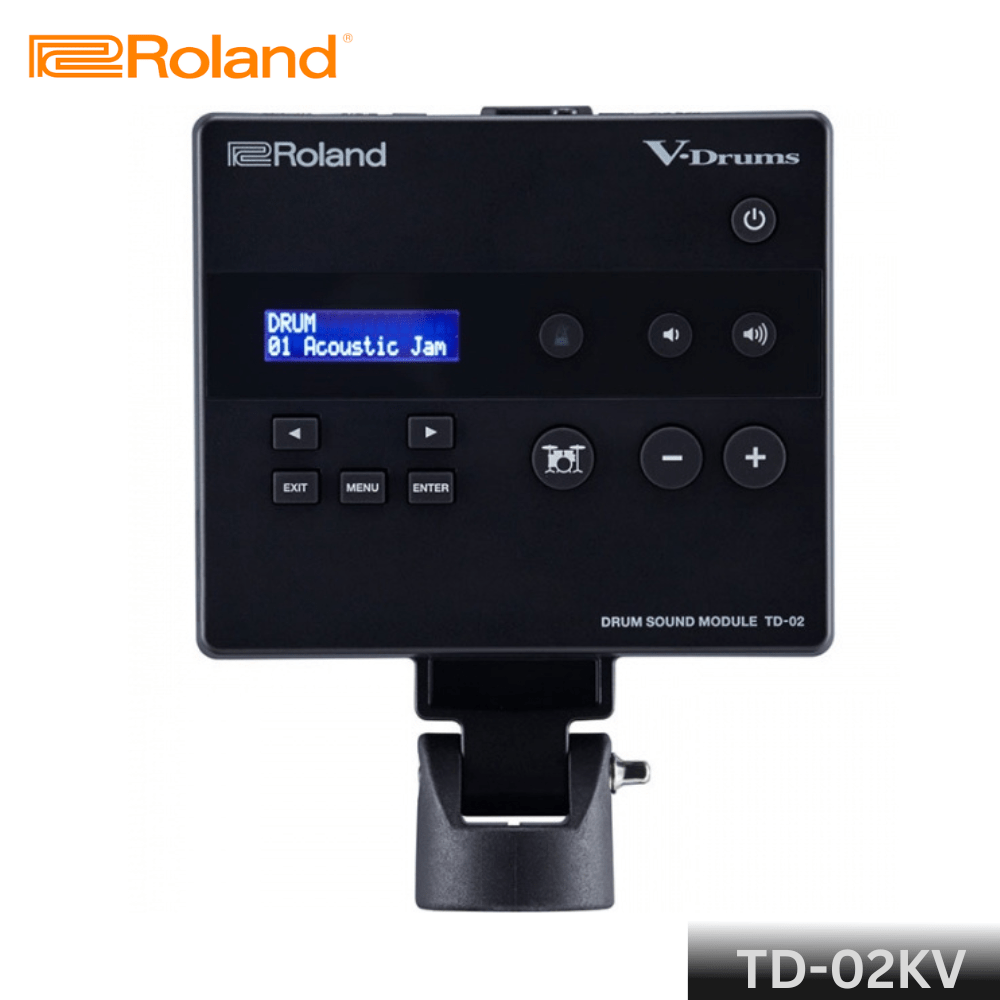

Kit Configuration (*1)                           Drum sound module: TD-02 x 1
Snare: PDX-8 x 1
Tom: PD-4 x 3
Hi-Hat: CY-5 x 1
Hi-Hat control pedal: FD-1 x 1
Crash: CY-5 x 1
Ride: CY-5 x 1
Kick: KT-1 x 1
Drum Stand: MDS-LITE x 1

Drum Kits                                                16

Coach Functions (5 modes)                   Time Check (easy)
Time Check (hard)
Quiet Count
Auto Up/Down
Change-Up

Metronome                                         Tempo (20–260)
Rhythm Type (5 types)
Sounds (15 types)

Display                                              16 Characters x 2 Lines LCD (with backlight)

Connectors                                        OUTPUT/PHONES Jack: Stereo Miniature Phone Type
MIX IN Jack: Stereo Miniature Phone Type
USB COMPUTER Port: USB B Type
TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3,                                                           Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL                                                             BT- DUAL)

USB COMPUTER                                 Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
Driver Mode: Generic, Vendor
Protocol: USB MIDI, USB Audio *2

USB Audio                                         Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 Channels
Playback: 2 Channels

Power Supply                                    AC Adaptor (DC 12 V)

Current Draw                                   200 mA

Accessories                                     Setup Guide
Leaflet “USING THE UNIT SAFELY”
AC Adaptor
Special Connection Cable
Drum Key

SIZE AND WEIGHT                           Width1,200 mm
47-1/4 inches
(Including the drum throne) Depth1,100 mm
43-5/16 inches
(Including the drum throne)Height1,200 mm
47-1/4 inches
(Including the drum throne)Weight14.3 kg / 31 lbs 7 oz

FEATURES :

The TD-02 series brings you the world’s finest entry-level electronic drumming experience—at an affordable price. Backed by decades of V-Drums innovation, these compact and highly expressive kits are far greater than the sum of their parts. Every element works together to form a complete musical foundation, from the world-class sounds and ultra-responsive pads to the onboard practice tools, robust hardware, and practical features for reducing noise when playing at home. And with expansion options such as Bluetooth® connectivity for mobile devices, upgradable pads, and more, you can easily grow your setup with genuine Roland accessories as needs evolve.

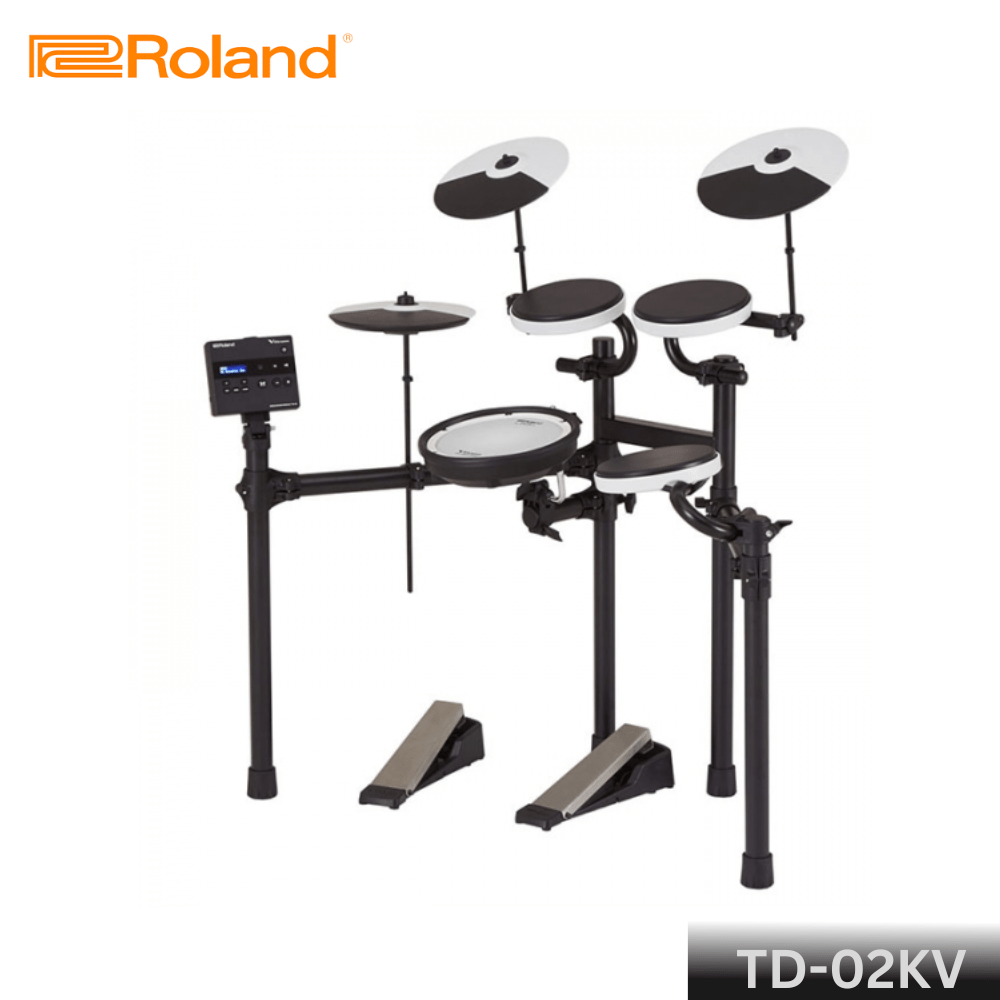

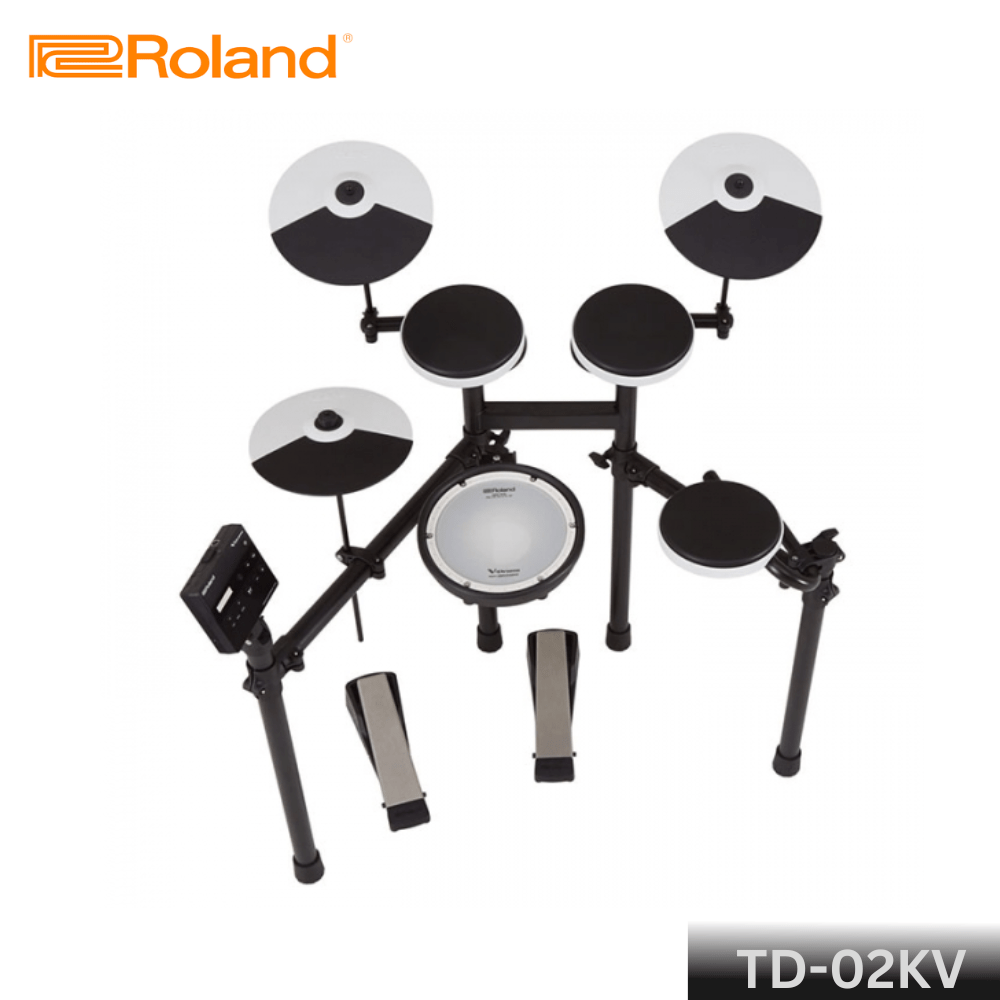

The TD-02KV is the top-line model in the series, featuring a mesh-head snare pad with natural acoustic stick feel and a rugged four-post stand with a wide acoustic-style playing layout. The kit also includes three tom pads, a quiet beaterless kick pedal, and three cymbal pads (hi-hat, crash, and ride).
